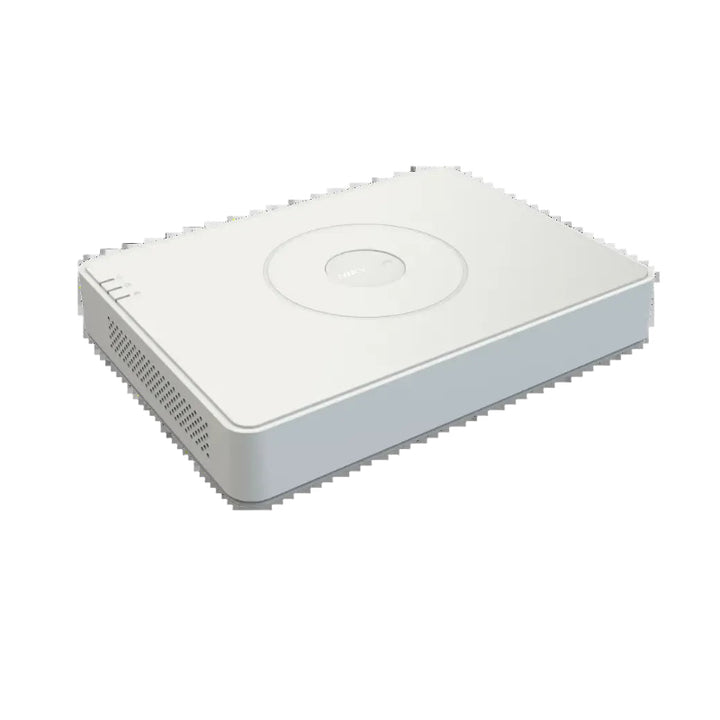

Hikvision DS-7116HQHI-M1/T 1080p 16-ch 1U AcuSense DVR

DS-7116HQHI-M1/S 16-ch 1080p Mini 1U H.265 AcuSense DVR

Why choose DS-7116HQHI-M1/S?

• Advanced Detection Technology: Deep learning-based human and vehicle target classification with Motion Detection 2.0.
• Smart Perimeter Protection: Line Crossing Detection and Intrusion Detection features.
• Advanced Video Compression: H.265 Pro+/H.265 Pro/H.265 for optimized storage and streaming.
• Multi-Video Inputs: Supports HDTVI/AHD/CVI/CVBS/IP video inputs.
• Audio via Coaxial Cable: Audio support through analog inputs.
• Up to 24 IP Camera Inputs: Supports cameras up to 6 MP resolution.
• Encoding Resolution up to 3K/5M Lite at 12 fps.

Detailed Specifications

• Motion Detection 2.0:
• Human/Vehicle Analysis: Deep learning-based motion detection is enabled by default for all analog channels, classifying humans and vehicles, reducing false alarms caused by objects like leaves or lights.
• Quick Search: Allows fast search by object or event type.
• Perimeter Protection:
• Line Crossing Detection/Intrusion Detection: Supports up to 4 channels for perimeter protection.
• Facial Detection: Face detection and capture, with face picture search functionality.
• Video and Audio:
• IP Video Input:
• 2 channels (up to 18 channels with Enhanced IP mode).
• Supports up to 6 MP resolution.
• Analog Video Input:
• 16 channels via BNC interface, supporting Coaxitron connection.
• Audio Input: 1 channel, RCA (2.0 Vp-p, 1 KΩ).
• Audio Output: 1 channel, RCA (Linear, 1 KΩ).
• Two-Way Audio: 1 channel, RCA.
• Encoding and Recording:
• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264.
• Encoding Resolution:
• 3K Lite/5 MP Lite/4 MP Lite/1080p/720p/VGA.
• 3K Lite/5 MP Lite/4 MP Lite/1080p Lite when 1080p Lite mode is enabled.
• Frame Rate:
• Main stream: up to 12 fps for 3K Lite, 15 fps for 4 MP Lite, and 25 fps for 1080p Lite.
• Sub-stream: WD1/4CIF at 12 fps, CIF at 25 fps.
• Network:
• Remote Connection: Supports up to 128 connections.
• Network Protocols: TCP/IP, PPPoE, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF.
• Network Interface: 1 x RJ45 10M/100M/1000M self-adaptive Ethernet interface.
• General Specifications:
• Power Supply: 12V DC, 2A.
• Power Consumption: ≤ 24W.
• Operating Temperature: -10°C to +55°C.
• Operating Humidity: 10% to 90%.
• Dimensions: 285 × 210 × 48 mm.
• Weight: ≤ 1 kg.
